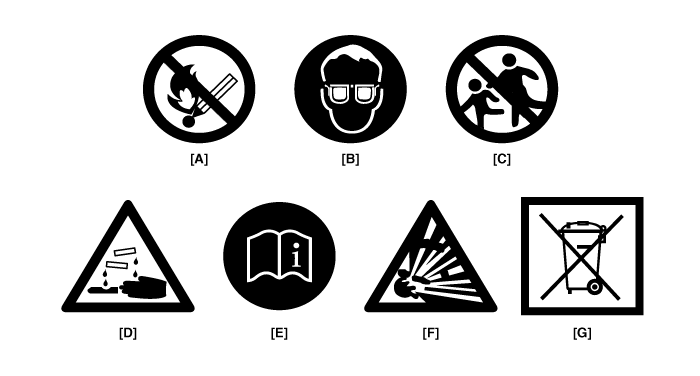

A. Keep lighted cigarettes and all other flames or sparks away from the battery. |
B. Wear eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed space.
|
C. Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow battery acid to contact your skin, eyes, clothing or paint finish. |
D. If any electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth until medical attention is received. If electrolyte gets on your skin, throughly wash the contacted area. If you feel a pain or a burning sensation, get medical attention immediately. |
E. Always read the following instructions carefully when handing a battery. |
F. Hydrogen, which is a highly combustible gas, is always presents in battery cells and may explode if ignited. |
G. An improperly disposed battery can be harmful to the environment and human health. Always confirm local regulations for battery disposal. |
Battery Itself |
|
||||||
Battery on Vehicle |
|
After reconnecting or recharging a discharged battery, the ESP
OFF indicator may illuminate.
In this case, turn the handle half way to the left and right whilst
the ignition switch is in the ON position.
Then, restart the engine after the ignition is OFF.
The ESP OFF indicator may turn OFF.
If the ESP OFF indicator does not turn OFF, have the system checked
reffering to DTC. (Refer to the BR group.)
|
Schematic Diagrams
System Block Diagram
Component Parts And Function Outline
Component part
Function
Vehicle-speed sensor
Converts vehicle speed to pulse.
...
