Hyundai Veloster: Brake Pedal. Components and Components Location - Brake System - Brake SystemHyundai Veloster: Brake Pedal. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / Brake System / Brake Pedal. Components and Components Location

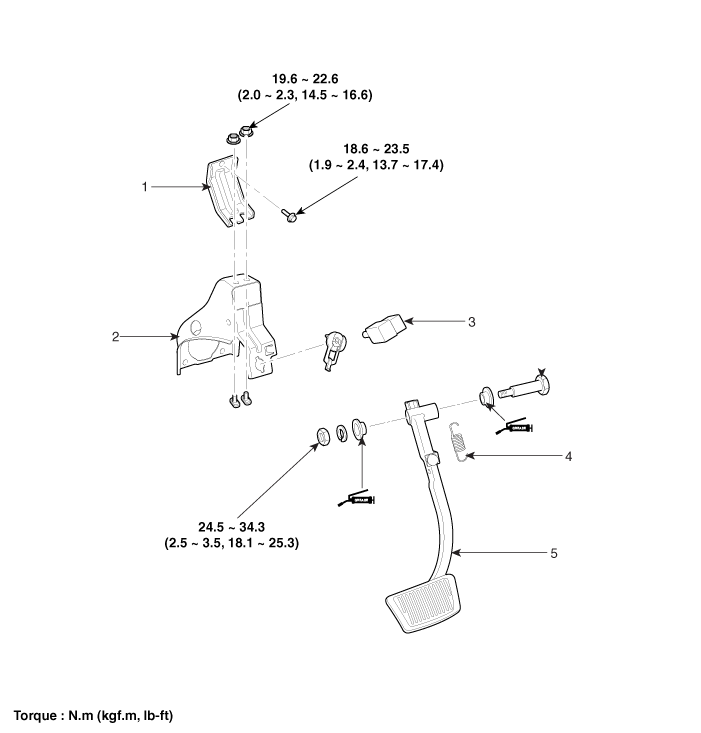

Components

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal
6. Brake pedal pad
