Hyundai Veloster: Camshaft Position Sensor (CMPS). Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Camshaft Position Sensor (CMPS). Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS). Schematic Diagrams

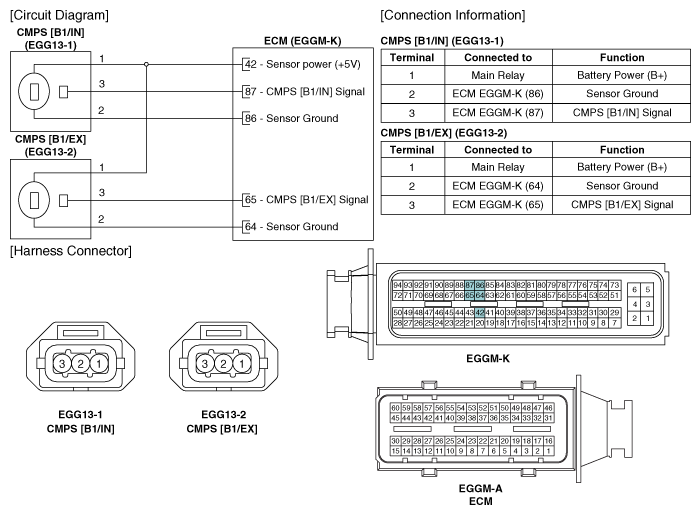

Circuit Diagram


Camshaft Position Sensor (CMPS). Troubleshooting
Wave Form ...

Camshaft Position Sensor (CMPS). Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” ...
