Hyundai Veloster: Components and Components Location
Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Components and Components Location

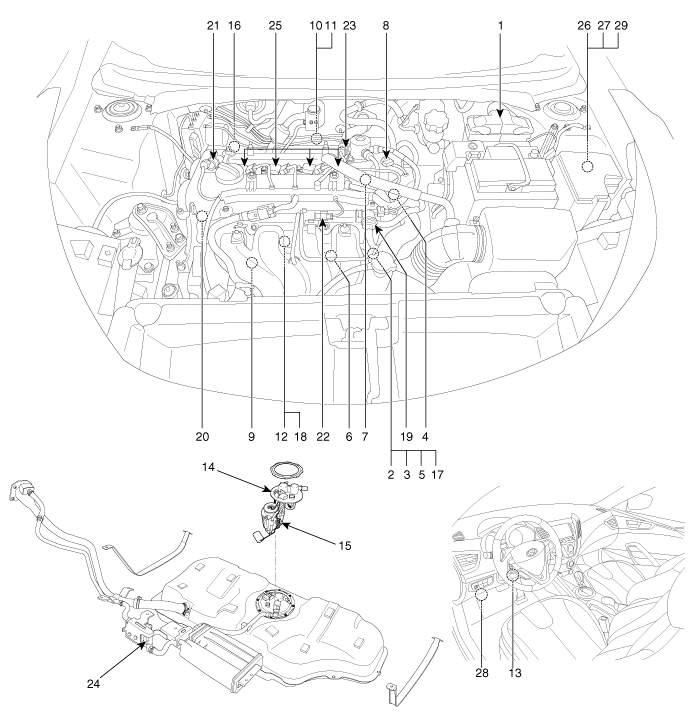

Components Location
|
1. Engine Control Module (ECM) 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) 4. Engine Coolant Temperature Sensor (ECTS) 5. Throttle Position Sensor (TPS) [integrated into ETC Module] 6. Crankshaft Position Sensor (CKPS) 7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] 9. Knock Sensor (KS) 10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] 11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] 12. Rail Pressure Sensor (RPS) 13. Accelerator Position Sensor (APS) 14. Fuel Tank Pressure Sensor (FTPS) 15. Fuel Level Sender (FLS) |
16. A/C Pressure Transducer (APT) 17. ETC Motor [integrated into ETC Module] 18. Injector 19. Purge Control Solenoid Valve (PCSV) 20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] 21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] 22. Variable Intake Solenoid (VIS) Valve 23. Fuel Pressure Control Valve (FPCV) 24. Canister Close Valve (CCV) 25. Ignition Coil 26. Main Relay 27. Fuel Pump Relay 28. Data Link Connector (DLC) [16-Pin] 29. Multi-Purpose Check Connector [20-Pin] |
|
1. Engine Control Module (ECM) |
2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) |
|
|
|
|
4. Engine Coolant Temperature Sensor (ECTS) |
5. Throttle Position Sensor (TPS) 17. ETC Motor |
|
|
|
|
6. Crankshaft Position Sensor (CKPS) |
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
|
|
|
|
9. Knock Sensor (KS) |
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] |
|
|
|
|
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
12. Rail Pressure Sensor (RPS) 18. Injector |
|
|
|
|
13. Accelerator Position Sensor (APS) |
14. Fuel Tank Pressure Sensor (FTPS) |
|
|
|
|
15. Fuel Level Sender (FLS) |
16. A/C Pressure Transducer (APT) |
|
|
|
|
19. Purge Control Solenoid Valve (PCSV) |
20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] |
|
|
|
|
21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] |
22. Variable Intake Solenoid (VIS) Valve |
|
|
|
|
23. Fuel Pressure Control Valve (FPCV) |
24. Canister Close Valve (CCV) |
|
|
|
|
25. Ignition Coil |
26. Main Relay 27. Fuel Pump Relay 29. Multi-Purpose Check Connector [20-Pin] |
|
|
|
|
28. Data Link Connector (DLC) [16-Pin] |
|
|
|
