Components Location
|

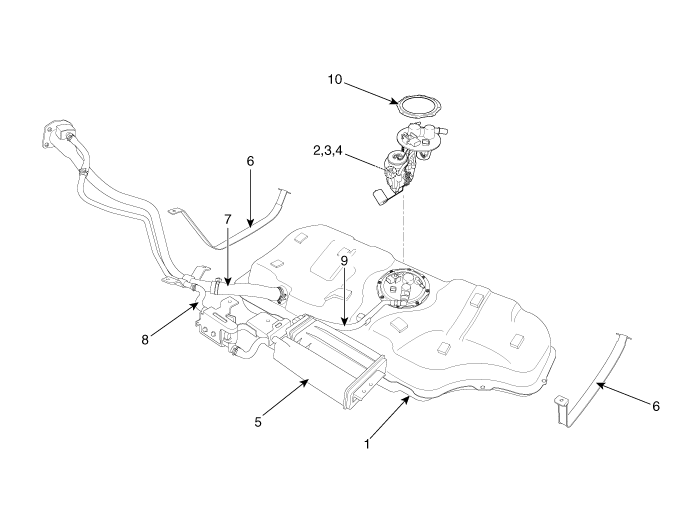

1. Fuel Tank 2. Fuel Pump 3. Fuel Filter 4. Fuel Pressure Regulator 5. Canister |
6. Fuel Tank Band 7. Fuel Filler Hose 8. Ventilation Hose 9. Vapor Tube 10. Fuel Pump Plate Cover |
| [High Pressure Fuel Line] |
|

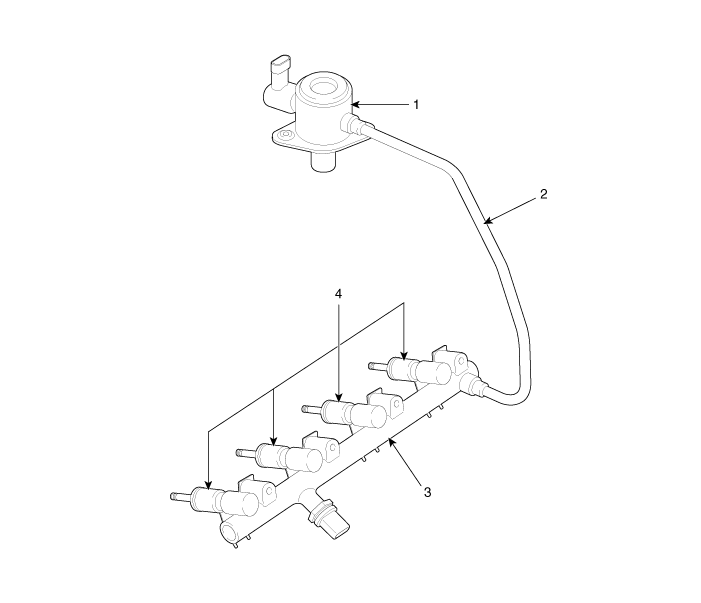

1. High Pressure Fuel Pump 2. High Pressure Fuel Pipe |
3. Delivery Pipe 4. Injector |
In case of removing the high pressure fuel pump, high pressure
fuel pipe, delivery pipe, and injector, there may be injury caused by
leakage of the high pressure fuel. So don’t do any repair work right
after engine stops.
|
Repair procedures
Fuel Pressure Test
1.
Release the residual pressure in fuel line (Refer to “Release
Residual Pressure in Fuel Line” in this group).
...
