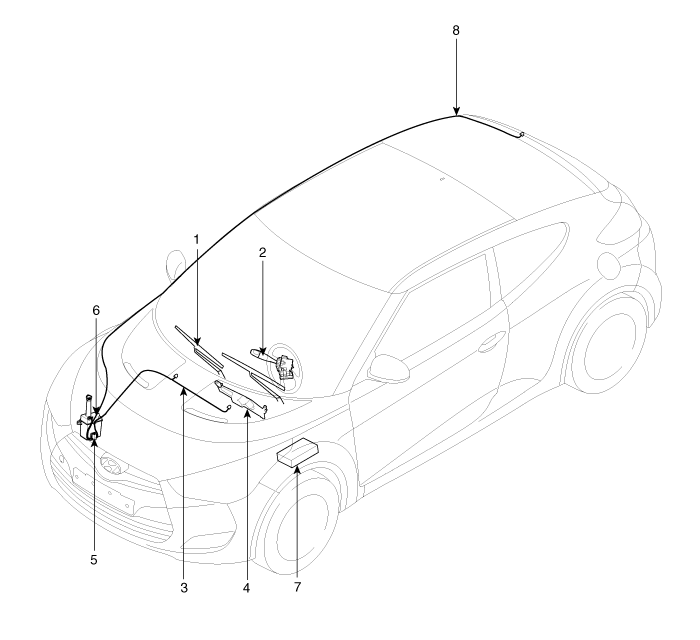

Component Location
|
1. Windshield wiper arm & blade 2. Wiper & washer switch 3. Windshield washer hose 4. Windshield wiper motor & linkage |
5. Washer motor 6. Washer reservoir 7. Wiper relay (Engine room relay box) 8. Rear washer hose |
Windshield Wiper-Washer Switch. Repair procedures
Inspection
Check for continuity between the terminals while operating the wiper and
washer switch. If it is not normal condition, replace wiper and wiper switch.
Wiper Switch
Washer S ...
