Hyundai Veloster: ETC (Electronic Throttle Control) System. Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: ETC (Electronic Throttle Control) System. Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System. Schematic Diagrams

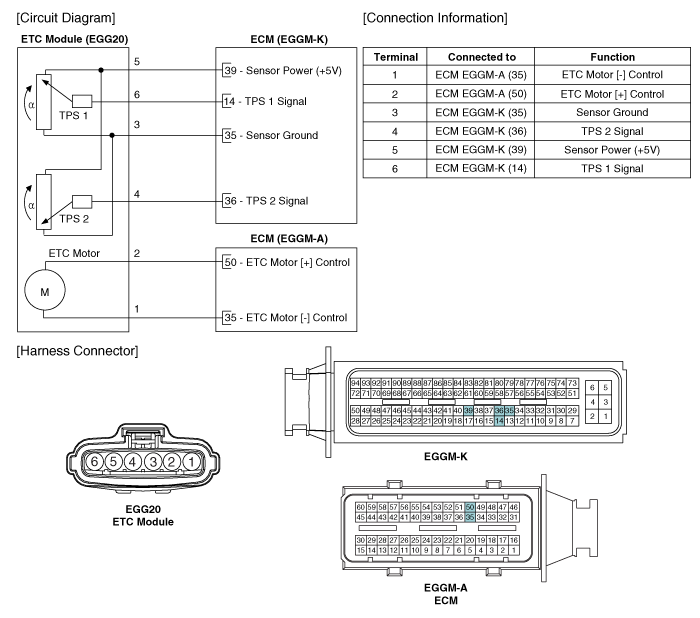

Circuit Diagram


ETC (Electronic Throttle Control) System. Specifications
Specification [Throttle Position Sensor (TPS)] Throttle angle(°) Output Voltage (V) TPS1 TPS2 0 0.5 4.5 ...

ETC (Electronic Throttle Control) System. Repair procedures
Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output ...
