Inspection
| 1. |
The GDS will be able to diagnose defects of hazard switch quickly.
The GDS can operates actuator manually, input/output value monitoring
and self diagnosis.
|
| 2. |
Select model and "BCM".
|
| 3. |
Select the "SJB" to check.
|
| 4. |

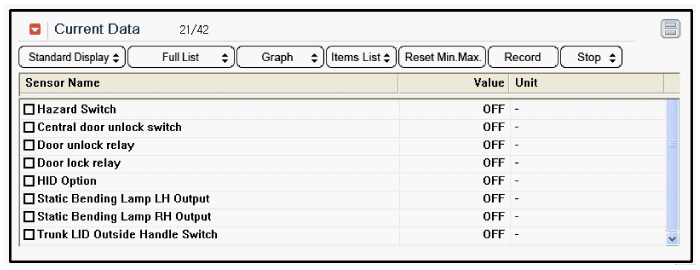

Select "Current data", if you will check current data of hazard
switch. It provides input/output status of SJB.
|
Removal
| 1. |
Disconnect the negative(-) battery terminal.
|
| 2. |
Remove the heater control module.
(Refer to the HA group - "Controller")
|
Installation
| 1. |
Install the heater control module.
(Refer to the HA group - "Controller")
|
License Lamp. Repair procedures
Removal
1.
Disconnect the negative(-) battery terminal.
2.
Replace the bulb after turning the socket (A).
Installation
...
Rheostat. Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower switch(A).
(Refer to the BD group - "Crash ...
