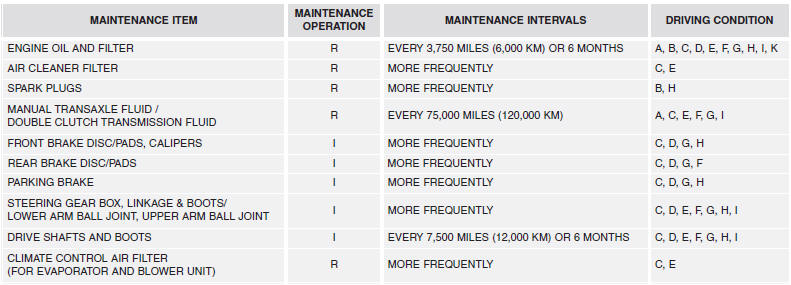

The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace
if necessary
SEVERE DRIVING CONDITIONS
A - Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B - Extensive engine idling
or low speed driving for long distances
C - Driving on rough, dusty, muddy, unpaved,
graveled or salt- spread roads
D - Driving in areas using salt or other corrosive
materials or in very cold weather
E - Driving in sandy areas
F - Driving in
heavy traffic area over 90°F (32°C)
G- Driving on uphill, downhill, or mountain
road
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a
patrol car, taxi, other commercial use or vehicle towing
J - Driving over 106
mph (170 km/h)
K - Frequently driving in stop-and-go conditions
