Hyundai Veloster 2011-2017 Service Manual / Engine Electrical System / General Information / Specifications

Specifications

Ignition System

Items
 Specification
Ignition coil
 Primary resistance
 0.75 ± 15% (Ω)
Secondary resistance
 5.9 (kΩ)
Spark plugs
 Type
 SILZKR6B10
Gap
 0.9 ~ 1.0 mm ( 0.0433 ~ 0.0394 in.)

Starting System

Items
 Specification
Starter
 Rated voltage
 12 V, 0.9kW
No. of pinion teeth
 8
No-load characteristics
 Voltage
 11.5V
Ampere
 60A, MAX
Speed
 5,500rpm, MIN

Charging System

Items
 Specifications
Alternator
(AMS)
 Rate voltage
 13.5V, 90A
Speed in use
 1,000 ~ 18,000 rpm
Voltage regulator
 IC regulator built-in type
Regulator setting voltage
 External mode
 ECU control
Internal mode
 14.55 ± 0.3V
Temperature compensation
 External mode
 ECU control
Internal mode
  -3.5 ± 2mV / °C

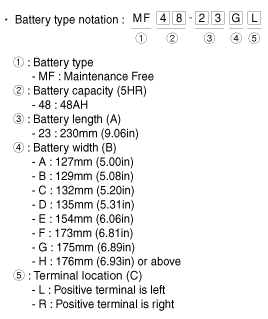

Battery
 Type
 36-20GL
Cold cranking amperage [at -18°C(-0.4°F)]
 410 A
Reserve capacity
 80 min
Specific gravity [at 25°C(77°F)]
 1.280 ± 0.01

•
COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
•
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
