Replacement
Tail Gate Assembly Replacement
•
|
When removing and installing the tail gate,
an assistant is necessary.
|
•
|
Take care not to damaged the tail gate and
body.
|
|
1. |
Remove the following items.
A. |
Tail gate frame upper trim & Tail gate center
trim
|
C. |
Tail gate frame side trim
|
|
2. |

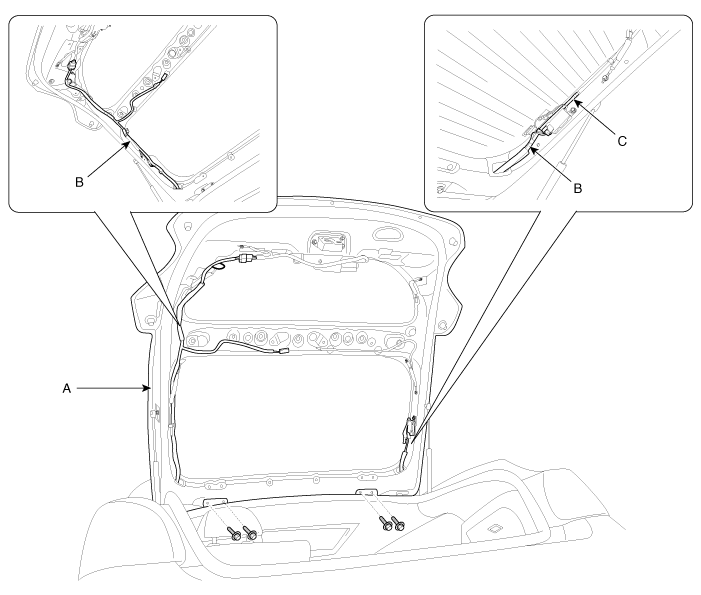

Remove the washer nozzle hose (C).
|
3. |
Disconnect the connectors and tail gate wiring harness
(B).
|
4. |
After loosening the mounting bolts, then remove the
tail gate assembly (A).
Tightening torque
:
21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~
19.5 lb-ft)
|
|
5. |
Using a screwdriver, lift the socket clips (A) up
slightly on both ends of the tail gate lifter (B).
|
6. |
Installation is the reverse of removal.
• |
Make sure the tail gate opens properly
and locks securely.
|
• |
Adjust the tail gate alignment.
|
• |
Make sure the connectors are connected
in properly.
|
• |
Replace any damage clips.
|
|
|
Tail Gate Trim Replacement
•
|
When prying with a flat-tip screwdriver,
wrap it with protective tape, and apply protective tape around
the related parts, to prevent damage.
|
•
|
Put on gloves to protect your hands.
|
|
1. |
Using a screwdriver or remover, remove the tail gate
frame upper trim (A) and tail gate center trim (B).
|
2. |
Using a screwdriver or remover, remove the tail gate
trim (A).
|
3. |
After loosening the mounting screws, then remove
the tail gate frame side trim (A).
|
4. |
Installation is the reverse of removal.
• |
Make sure the tail gate opens properly
and locks securely.
|
• |
Replace any damaged clips.
|
|
|
Tail Gate Latch Replacement
•
|
When prying with a flat-tip screwdriver,
wrap it with protective tape, and apply protective tape around
the related parts, to prevent damage.
|
•
|
Put on gloves to protect your hands.
|
|
1. |
Remove the following items:
|
2. |
Disconnect the tail gate latch connector (A).
|
3. |
After loosening the mounting bolts, then remove the
tail gate latch assembly (A).
Tightening torque
:
6.9 ~ 10.8N.m (0.7 ~ 1.1kgf.m, 5.1 ~ 8.0
lb-ft)
|
|
4. |
Installation is the reverse of removal
• |
Make sure the tail gate opens properly
and locks securely.
|
• |
Make sure the connector is connected
properly and the connecting rod is connected properly.
|
• |
Replace any damaged clips.
|
|
|
Tail Gate Outside Handle Replacement
•
|
When prying with a flat-tip screwdriver,
wrap it with protective tape, and apply protective tape around
the related parts, to prevent damage.
|
•
|
Put on gloves to protect your hands.
|
|
1. |
Remove the following items:
|
2. |
Disconnect the tail gate outside handle connector
(A).
|
3. |
Loosen the tail gate outside handle mounting nuts.
|
4. |
Remove the tail gate outside handle (A).
|
5. |
Installation is the reverse of removal
• |
Make sure the tail gate locks/unlocks
and opens/closes properly.
|
• |
Make sure connectors are connected
properly and each rod is connected securely.
|
• |
Replace any damaged clips.
|
|
|
Tail Gate Lift Replacement
•
|
Take care to not let the tailgate fall on
you as the lifts are removed. Have a helper hold the tailgate
open, or use a secure method to hold it open.
|
|
1. |
Using a screwdriver (A), lift up slightly the socket
clips (B) of both ends on the lifter (D), and then remove the lifter
from the bracket (C).
|
2. |
Push the socket of the lifter into the bracket for
installation.
• |
Make sure the tail gate locks and
opens properly and locks securely.
|
|
|
Tail Gate weatherstrip Replacement
•
|
Do not apply sealant to the body.
|
|
1. |
Remove the tail gate weatherstrip (A).
|
2. |
Installation is the reverse of removal.
• |
Install the weatherstrip aligned
with center line (B).
|
|
|

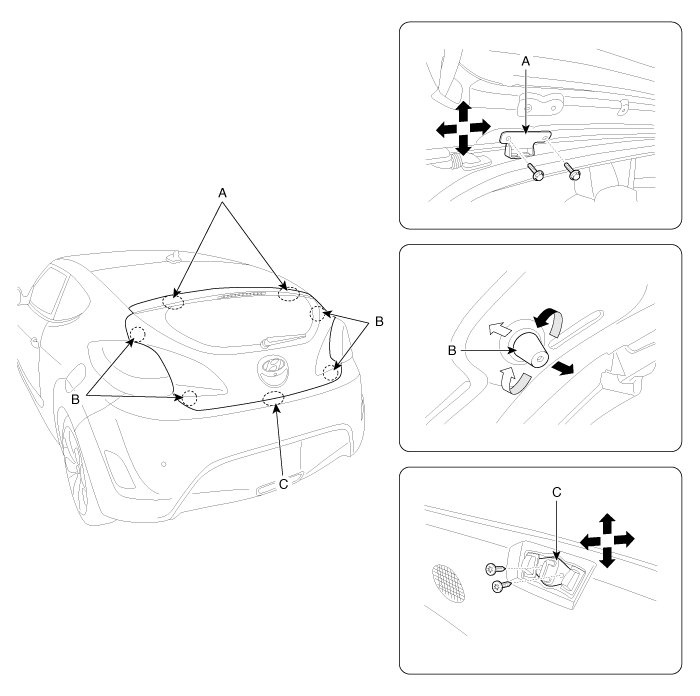

Adjustment
1. |
After loosening the tail gate hinge (A) mounting
bolt, adjust the tail gate by moving it up or down, or right or left.
|
2. |
Adjust the tail gate height by turning the tail gate
overslam bumpers (B).
|
3. |
After loosening the tail gate striker (C) mounting
bolts, adjust the tail gate striker by moving it up or down, or right
or left.
|
