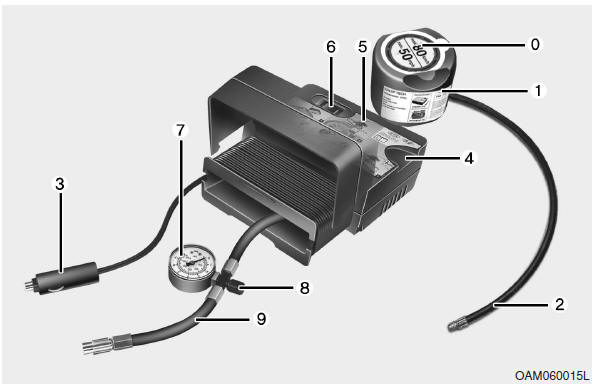

0. Speed restriction label
1. Sealant bottle and label with speed restriction
2. Filling hose from sealant bottle to wheel
3. Connectors and cable for the power
outlet direct connection
4. Holder for the sealant bottle 5. Compressor
6. On/off
switch
7. Pressure gauge for displaying the tire inflation pressure
8. Button
for reducing tire inflation pressure
9. Hose to connect compressor and sealant
bottle or compressor and wheel
Connectors, cable and connection hose are stored in the compressor housing.
WARNING
WARNING - Sealant
CAUTION
Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.
