Replacement
Cluster Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Using a screwdriver or remover, remove the cluster
fascia lower panel (A).
|
|
2. |
After loosening the mounting screws, then remove
the cluster fascia upper panel (A).
|
|
3. |
After loosening the mounting screws, then remove
the cluster assembly (A).
|
|
4. |
Disconnect the connector (A).
|
|
5. |
Installation is the reverse of removal.
|
• |
Make sure the connectors are connected
in properly.
|
|
• |
Replace any damage clips.
|
|
|
Center Facia Panel Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Using a screwdriver or remover, remove the center
facia panel (A).
|
|
2. |
Disconnect the heater control unit connectors (A).
|
|
3. |
Installation is the reverse of removal.
|
• |
Make sure the connector are connected
in properly.
|
|
• |
Replace any damage clips.
|
|
|
Crash Pad Lower Panel Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Remove the following items.
| A. |
Front door scuff trim
(Refer to the BD group – “Interior Trim”)
|
| B. |
Cowl side trim
(Refer to the BD group- "Interior Trim”)
|
|
|
2. |
Using a screwdriver or remover, remove the crash
pad side cover (A).
|
|
3. |
After loosening the mounting screws, then remove
the crash pad lower panel (A).
|
|
4. |
Disconnect the crash pad switch connectors (A) and
diagnosis connector (B).
|
|
5. |
Installation is the reverse of removal.
|
• |
Make sure the connector are connected
in properly.
|
|
• |
Replace any damage clips.
|
|
|
Audio assembly Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Using a screwdriver or remover, remove the center
facia panel (A).
|
|
2. |
Disconnect the heater control unit connectors (A).
|
|
3. |
After loosening the mounting screws, then remove
the audio assembly (A).
|
|
4. |
Disconnect the audio connectors (A).
|
|
5. |
Installation is the reverse of removal.
|
• |
Make sure the connectors are connected
in properly.
|
|
• |
Replace any damaged clips.
|
|
|
Heater Control Unit Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Using a screwdriver or remover, remove the center
facia panel (A).
|
|
2. |
Disconnect the heater control unit connectors (A).
|
|
3. |
After loosening the mounting screws, then remove
the heater control unit (A).
|
|
4. |
Installation is the reverse of removal.
|
• |
Make sure the connector are connected
in properly.
|
|
• |
Replace any damaged clips.
|
|
|
Glove Box Housing Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Using a screwdriver or remover, remove the crash
pad side cover (A).
|
|
2. |
Disconnect the guide (B) from the glove box (A).
|
|
3. |
Disconnect the lift (A) from the glove box (B).
|
|
4. |
Disconnect the pin (A) and then remove the glove
box (B).
|
|
5. |
After loosening the mounting screws, then remove
the glove box housing (A).
|
|
6. |
Disconnect the glove box lamp connector (A).
|
|
7. |
Installation is the reverse of removal.
|
• |
Make sure the connector are connected
in properly.
|
|
• |
Replace any damage clips.
|
|
|
Shroud Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
After loosening the mounting screws, then remove
the shroud assembly (A).
|
|
2. |
Installation is the reverse of removal.
|
• |
Replace any damage clips.
|
|
|
Crash Pad Side Cover Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Using a screwdriver or remover, remove the crash
pad side cover (A).
[Driver's]
[Passenger's]
|
|
2. |
Installation is the reverse of removal.
|
• |
Replace any damage clips.
|
|
|
Main Crash Pad Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Remove the following items.
| A. |
Front seat
(Refer to the BD group – “Front Seat”)
|
| B. |
Front pillar trim
(Refer to the BD group – “Interior Trim”)
|
| C. |
Floor console assembly & Console side cover
(Refer to the BD group – “Console”)
|
| D. |
Front door scuff trim
(Refer to the BD group – “Interior Trim”)
|
| E. |
Cowl side trim
(Refer to the BD group- Interior Trim”)
|
| H. |
Cluster fascia upper panel & Cluster fascia
lower panel
|
| L. |
Glove box & Glove box housing
|
| M. |
Steering column
(Refer to the ST group - "Steering Column
and Shaft")
|
|
|
2. |
After loosening the mounting screws, then remove
the start/stop button bezel (A).
|
|
3. |
Disconnect the start/stop button bezel connector
(B).
|
|
4. |
Using a screwdriver or remover, remove the crash
pad center lower panel (A).
|
|
5. |
Disconnect the connectors (A).
|
|
6. |
After loosening the mounting screws, then remove
the side air vent duct [RH] (A).
|
|
7. |

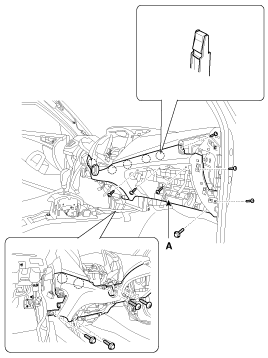

After loosening the mounting screws and bolts, then
remove the crash pad main lower panel (A).
|
|
8. |
Disconnect the smart key unit antenna connector (A).
|
|
9. |
Disconnect the center speaker connector (A) and BCM
unit connector (B).
|
|
10. |
Loosen the mounting bolts (A).
|
|
11. |
Using a screwdriver or remover, remove the photo
sensor (A).
|
|
12. |
Disconnect the photo sensor connector (B).
|
|
13. |

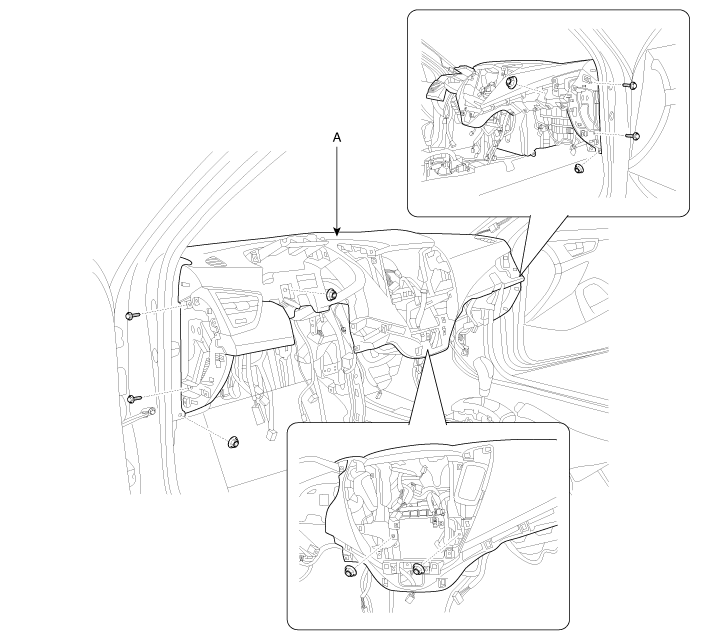

After loosening the mounting bolts and nuts, then
remove the main crash pad assembly (A).
|
|
14. |
Disconnect the passenger`s airbag connector (A).
|
|
15. |
Installation is the reverse of removal.
|
• |
Make sure the crash pad fits onto
the guide pins correctly.
|
|
• |
Before tightening the bolts, make
sure the crash pad wire harnesses are not pinched.
|
|
• |
Make sure the connectors are plugged
in properly, and the antenna lead is connected properly.
|
|
• |
Enter the anti- theft code for the
radio, then enter the customer`s radio station presets.
|
|
|
Cowl Cross Bar Replacement
| •
|
A plastic trim tool is recommended, but if
prying with a screwdriver, wrap it with protective tape, and
apply protective tape around the related parts, to prevent damage.
|
| •
|
Put on gloves to protect your hands.
|
|
|
1. |
Remove the following items.
| A. |
Front seat
(Refer to the BD group - "Front Seat")
|
| B. |
Front pillar trim
(Refer to the BD group – “Interior Trim”)
|
| C. |
Front door scuff trim
(Refer to the BD group – “Interior Trim”)
|
| D. |
Cowl side trim
(Refer to the BD group- Interior Trim”)
|
| E. |
Floor console assembly & Console side cover
(Refer to the BD group – “Console”)
|
| F. |
Cowl top cover
(Refer to the BD group - "Cowl Top Cover")
|
|
Components
1. Main crash pad assembly
2. Center speaker grille
3. Center speaker assembly
4. Photo sensor
5. Cluster fascia lower panel
6. Cluster fascia upper panel ...
