Hyundai Veloster: Roof Trim. Components and Components
Location - Interior - Body (Interior and Exterior)Hyundai Veloster: Roof Trim. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Interior / Roof Trim. Components and Components Location

Components

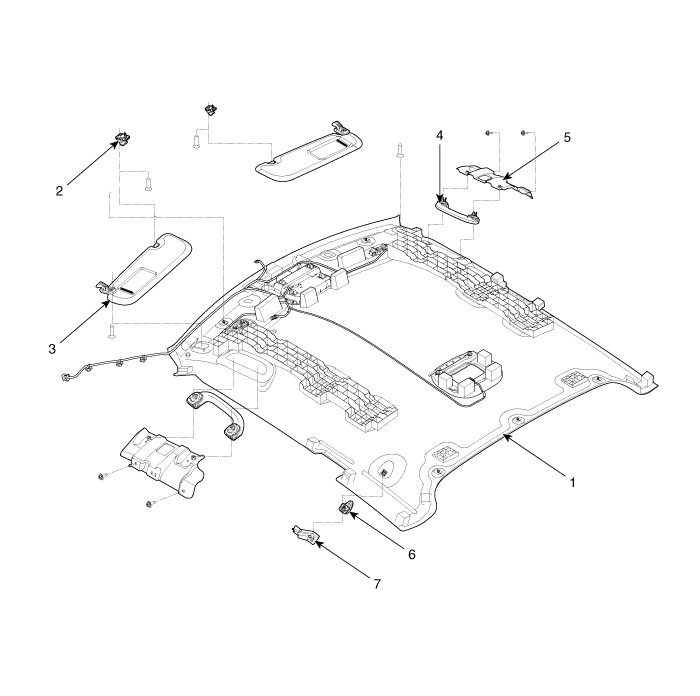

[General Type]

1. Roof trim
2. Retainer
3. Sunvisor
4. Assist handle
5. Assist handle bracket assembly
6. Garment hook assembly
7. Coat hook mounting bracket assembly

Components

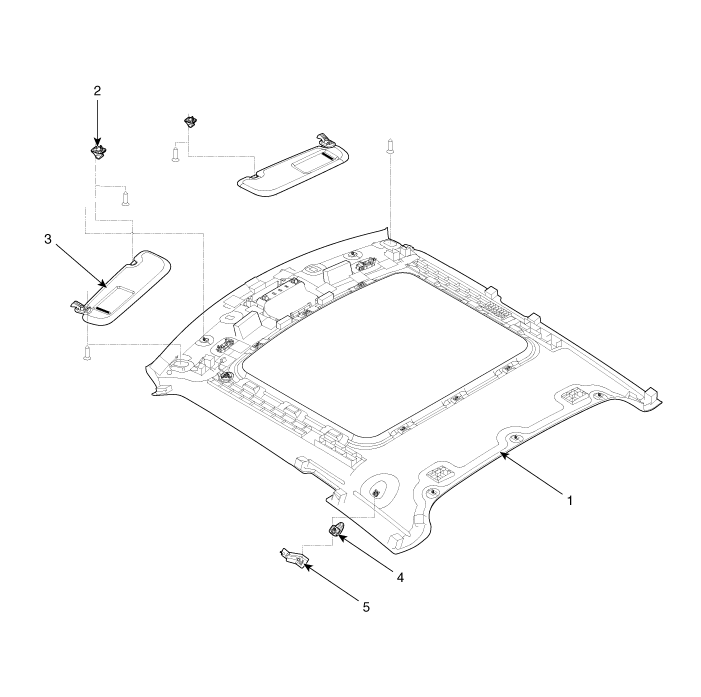

[Panoramaroof Type]

1. Roof trim
2. Retainer
3. Sunvisor
4. Garment hook assembly
5. Coat hook mounting bracket assembly
