Hyundai Veloster: Interior Trim. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Interior / Interior Trim. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Interior / Interior Trim. Components and Components
Location
Components

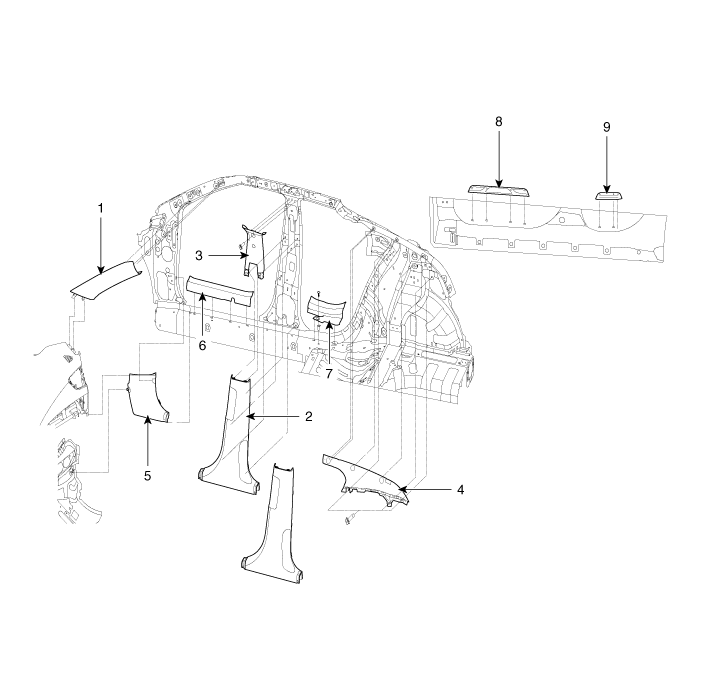

| [RH] |
|
1. Front pillar trim 2. Center pillar lower trim 3. Center pillar upper trim 4. Rear pillar trim 5. Cowl side trim |
6. Front door scuff trim 7. Rear door scuff trim 8. Front door step trim 9. Rear door step trim |

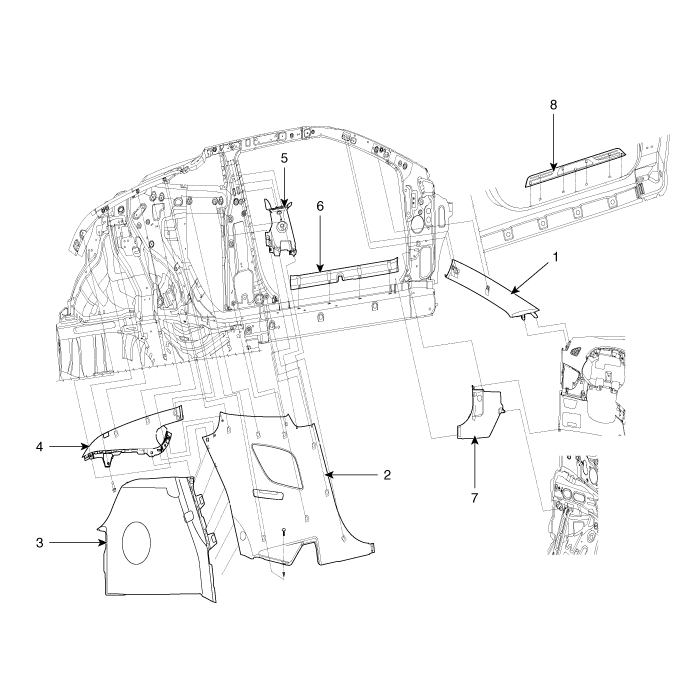

| [LH] |
|
1. Front pillar trim 2. Center pillar lower trim 3. Luggage side trim 4. Rear pillar trim |
5. Center pillar upper trim 6. Front door scuff trim 7. Cowl side trim 8. Front door step trim |
