Hyundai Veloster: Interior Trim. Repair procedures - Interior - Body (Interior and Exterior)Hyundai Veloster: Interior Trim. Repair procedures

Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Interior / Interior Trim. Repair procedures

Replacement

Door Scuff Trim Replacement
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Using a screwdrier or remover, remove the front door scuff trim (A).
[Front]
2.
Remove the rear seat cushion.
(Refer to the BD group - "Rear Seat")
3.
After loosening the mounting screw, then remove the rear door scuff trim (A).
[Rear]
4.
Installation is the reverse of removal.
•
Replace any damage clips.
Front Pillar Trim Replacement
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Using a screwdriver or remover, remove the front pillar trim (A).
2.
Installation is the reverse of removal.
•
Replace any damage clips.
Cowl Side Trim Replacement
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front door scuff trim.
2.
Remove the hood latch release handle.
(Refer to the BD group - "Hood")
3.
Using a screwdriver or remover, remove the cowl side trim (A).
•
Be careful not to damage the cowl side trim clip (B).
•
Pull the cowl side tirm as direction of the arrow and then remove the tirm.

4.
Installation is the reverse of removal.
•
Replace any damage clips.
Center Pillar Trim Replacement
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the following items first :
A.
Front door scuff trim
(Refer to the BD group – “Interior Trim”).
B.
Rear door scuff trim [RH]
(Refer to the BD group – “Interior Trim”).
2.
Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
3.
The seat belt anchor pretensioner (A) be removed after pushing the lock pin (B) as arrow direction.
[LH]

[RH]
4.
Using a screwdriver or remover, remove the center pillar lower trim (A).
[LH]

[RH]
5.
Using a screwdriver or remover, remove the front seat belt upper anchor cover (A).
[LH]

[RH]
6.
After loosening the mounting bolt, then remove the front seat belt upper anchor (A).
[LH]
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

[RH]
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

7.
After loosening the mounting bolt, then remove the center pillar upper trim (A).
[LH]

[RH]
8.
Installation is the reverse of removal.
•
Replace any damage clips.
Rear Pillar Trim Replacement
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat.
(Refer to the BD group – “Rear Seat”)
2.
Using a screwdriver or remover, remove the rear transverse trim (A).
3.
After loosening the mounting screw, then remove the rear door scuff trim (A).
4.
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
[LH, RH]
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

5.
Using a screwdriver or remover, remove the center pillar lower trim (A).
[LH]
6.
Using a screwdriver or remover, remove the luggage side trim lamp (A).
7.
Disconnect the luggage side trim lamp connector (B).
8.
After loosening the mounting screws, then remove the luggage side trim (C).
[LH]

[RH]
9.
After loosening the mounting bolts, then remove the rear pillar trim (A).
[LH]

[RH]
10.
Installation is the reverse of removal.
•
Replace any damage clips.
•
Make sure the connector is connected properly.
Luggage Side Trim Replacement
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the following items first :
A.
Rear seat assembly
(Refer to the BD group - "Rear Seat")
B.
Front door scuff trim [LH]
C.
Center pillar lower trim [LH]
D.
Rear door scuff trim [RH]
E.
Rear transverse trim
2.
After loosening the mounting screws, then remove the luggage side trim.
3.
Installation is the reverse of removal.
•
Replace any damage clips.

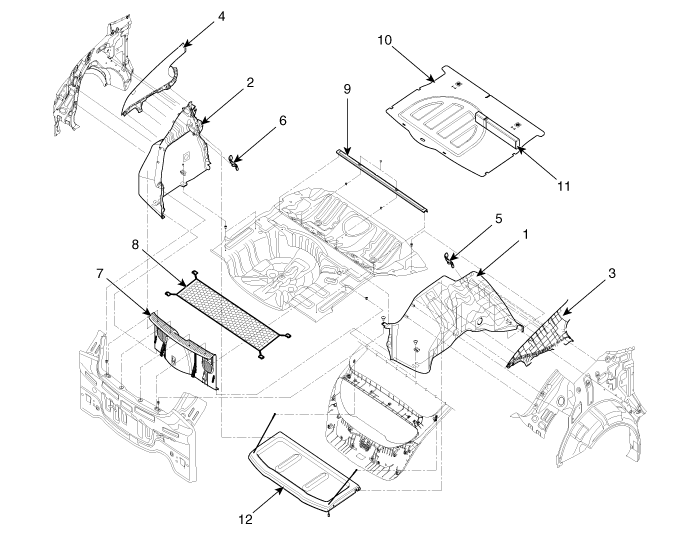

1. Luggage side trim [RH]
2. Luggage side trim [LH]
3. Rear pillar trim [RH]
4. Rear pillar trim [LH]
5. Luggage rear cover [RH]
6. Luggage rear cover [LH]
 7. Rear transverse trim
8. Luggage net assembly
9. Load floor front trim
10. Luggage covering mat
11. Car warning triangle assembly
12. C piller shelf center trim
