Inspection
| 1. |
Remove the overhead console lamp (map lamp) assembly then check
for continuity between terminals. If the continuity is not as specified,
replace the map lamp switch.

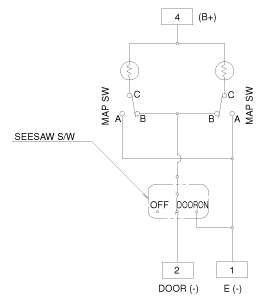

[Overhead console]

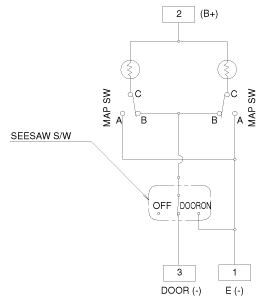

[Map lamp]
|
Removal
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Loosen 2 screws holding the overhead console (A).
Remove the overhead console (A) after loosening 2 screws.
|
| 3. |
Disconnect the connectors (A) of sunroof switch and lamp switch
then remove the overhead console lamp assembly.
|
| 4. |
If necessary to replace the bulb, replace the bulb after removing
the overhead console lens (A).
|
Installation
| 1. |
Install the overhead console lamp.
|
| 2. |
Connect the sunroof switch connector and lamp connector.
|
| 3. |
Install the overhead console assembly.
|
Room Lamp. Repair procedures
Removal
Vanity Lamp
1.
Disconnect the negative (-) battery terminal.
2.
Remove the vanity lamp assembly after disconnecting the connector.
...
License Lamp. Repair procedures
Removal
1.
Disconnect the negative(-) battery terminal.
2.
Replace the bulb after turning the socket (A).
