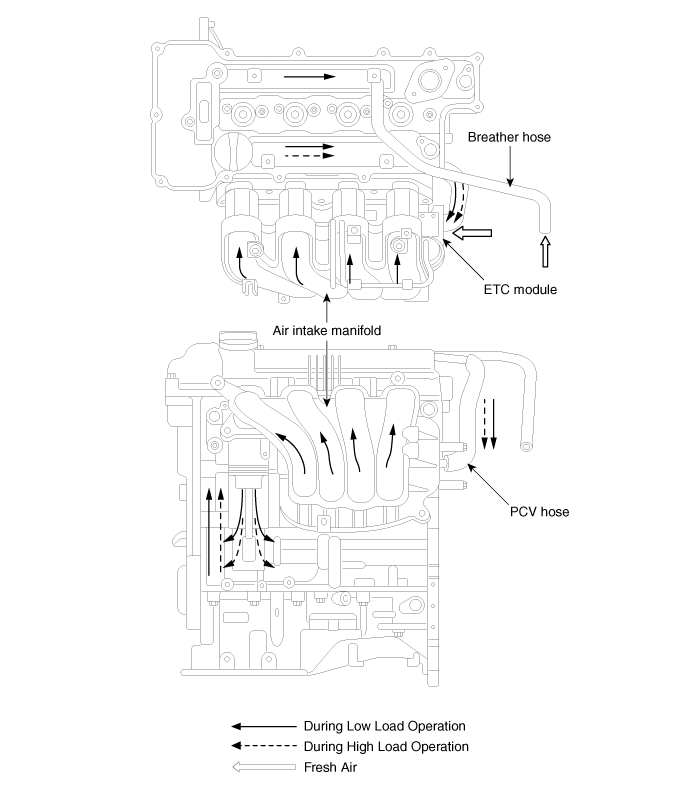

Hyundai Veloster: Schematic Diagrams

Crankcase Emission Control System

...

Repair procedures

Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor hose. ...
