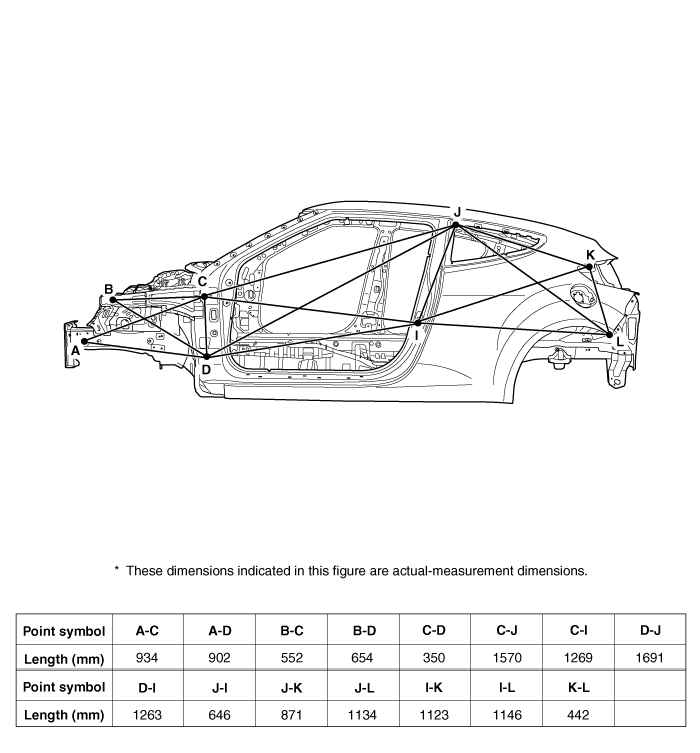

Side Body A (LH)
|
|
|
|
|
Front side member tooling hole (Ø12) |
Fender apron upper member tooling hole (Ø7) |
Front door upper hinge mounting hole (Ø13) |
|
|
|
|
|
Front door lower hinge mounting hole (Ø13) |
Front door switch mounting hole (Ø10) |
Quarter fixed glass mounting notch |
|
|
|
|
|
Rear combination lamp mounting hole (Ø6) |
Quarter outer panel corner |
|
Side Body B (LH)
|
|
|
|
|
Side outer panel notch |
Side outer panel notch |
Side outer panel notch |
|
|
|
|
|
Side outer panel notch |
Front door switch mounting hole (Ø10) |
|

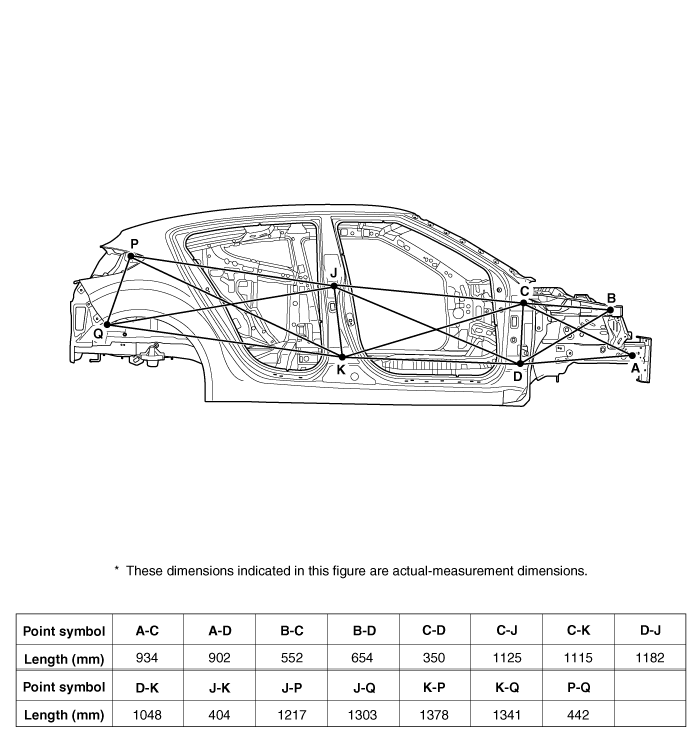

Side Body C (RH)
|
|
|
|
|
Front side member tooling hole (Ø12) |
Fender apron upper member tooling hole (Ø7) |
Front door upper hinge mounting hole (Ø13) |
|
|
|
|
|
Front door lower hinge mounting hole (Ø13) |
Rear door upper hinge mounting hole (Ø13) |
Rear door lower hinge mounting hole (Ø13) |
|
|
|
|
|
Rear combination lamp mounting hole (Ø6) |
Quarter outer panel corner |
|

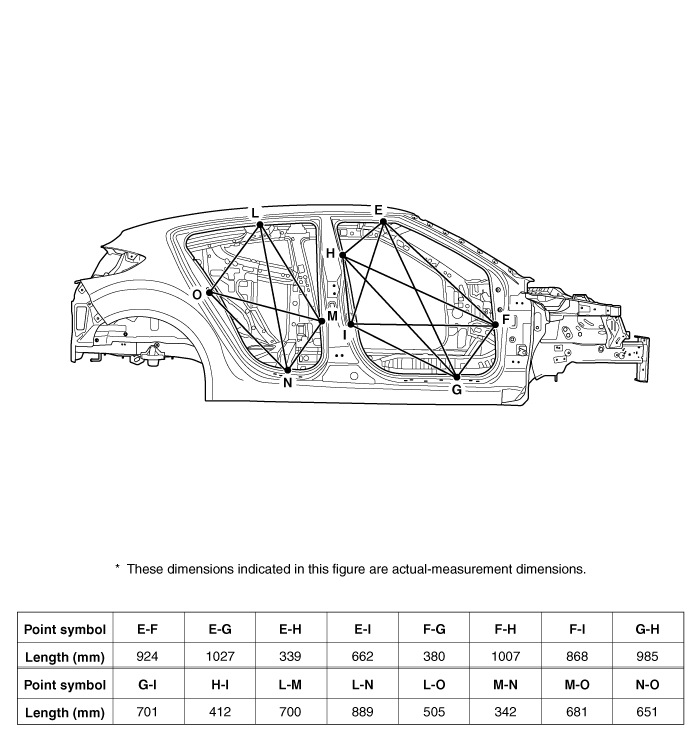

Side Body D (RH)
|
|
|
|
|
Side outer panel notch |
Side outer panel notch |
Side outer panel notch |
|
|
|
|
|
Side outer panel notch |
Front door switch mounting hole (Ø10) |
Side outer panel notch |
|
|
|
|
|
Side outer panel notch |
Side outer panel notch |
Rear door switch mounting hole (Ø10) |
